 The Bullet
 Target
 SHOT HOLES IN AR500 TARGETS
 New Topic  Reply to Topic
 Printer Friendly
Author  Topic Next Topic

DUSTY NOGGIN
Advanced Member



USA
758 Posts

Posted - Aug 06 2016 :  09:33:49  Show Profile Send DUSTY NOGGIN a Private Message  Reply with Quote
i wanted to start a thread to give an idea to future shooters what level of fps and energy required to pierce different thicknesses and types of steel targets and different ranges

i just shot holes through a 50$ AR500 plate thinking it was impenetrable

It would be a great to know at what distance to safely shoot at a steel target without piercing through it ahead of time

if you have ever pierced a steel target of any type please post your findings

Im hoping this thread picks up and gets a few reply's so to kind of keep it organized, you can copy and paste this into your reply's

heres a link to an energy calculator
http://www.shooterscalculator.com/bullet-kinetic-energy.php

Pierced ? Yes/No:
Material Type:
Material Thickness:
Target Supported or hanging:
Cartridge Used:
Reloads/Factory:
projectile Make:
Projectile Type:
Projectile weight:
Projectile Comments:
Target Distance:
Velocity @ Target:
Energy @ target:

Overall Comments:

Edited by - DUSTY NOGGIN on Aug 06 2016 10:16:51

DUSTY NOGGIN
Advanced Member



USA
758 Posts

Posted - Aug 06 2016 :  09:38:22  Show Profile Send DUSTY NOGGIN a Private Message  Reply with Quote
Pierced ? Yes/No: NO
Material Type: AR500
Material Thickness: 3/8"
Target Supported or hanging: GROUND SUPORTED
Cartridge Used: 30/06 SPRG
Reloads/Factory: FACTORY REM CORELOCT
projectile Make:
Projectile Type: JACKETED SOFT POINT
Projectile weight: 165gR
Projectile Comments:
Distance: 258 YRDS
Velocity @ Target:2140
Energy @ Target:1640

Overall Comments: NO DINGS IN PLATE AT ALL

Edited by - DUSTY NOGGIN on Aug 06 2016 10:18:13
Go to Top of Page

DUSTY NOGGIN
Advanced Member



USA
758 Posts

Posted - Aug 06 2016 :  09:52:00  Show Profile Send DUSTY NOGGIN a Private Message  Reply with Quote
Pierced ? Yes/No: No
Material Type: AR500
Material Thickness: 3/8"
Target Supported or hanging: GROUND SUPPORTED
Cartridge Used: 338 WIN MAG
Reloads/Factory: FACTORY FEDERAL
projectile Make:
Projectile Type: SOFT POINT
Projectile weight: 250gr
Projectile Comments:
Distance : 100 yards
Energy @ Target:2665
Velocity @ Target:2191

Overall Comments:LEFT SOME BB SIZED TIP DINGS BUT NO DENTS


Edited by - DUSTY NOGGIN on Aug 06 2016 10:21:55
Go to Top of Page

DUSTY NOGGIN
Advanced Member



USA
758 Posts

Posted - Aug 06 2016 :  10:10:55  Show Profile Send DUSTY NOGGIN a Private Message  Reply with Quote
Pierced ? Yes/No: YES
Material Type: AR500
Material Thickness: 3/8"
Target Supported or hanging: GROUND SUPORTED
Cartridge Used: 300 REMINGTON ULTRA MAG
Reloads/Factory:FACTORY CORELOT POWER LEVEL III 3
projectile Make:
Projectile Type: JACKETED SOFT POINT
Projectile weight: 180 GR
Projectile Comments:
Target Distance 1: 258 YARD
Velocity @ Target: 2630
Energy @ target: 2765

Overall Comments: 3 WENT THROUGH & 1 LEFT DIP THE SIZED OF PEA , 1/8" DEEP

Edited by - DUSTY NOGGIN on Aug 06 2016 10:13:09
Go to Top of Page

ten2six
Advanced Member



USA
4023 Posts

Posted - Aug 06 2016 :  11:22:50  Show Profile Send ten2six a Private Message  Reply with Quote
Dusty,

JMHO, but allowing the target to swing makes a difference in whether a round penetrates. I usually set mine up at 300 yards and barely get impact craters with most high powered hunting calibers. I have lost one of the tow straps from spalling...melted the nylon clear through. If I make sure the connection is on the back it does better. The deepest craters I get are from little (32 gr) .204 Ruger rounds, although they're going ~ 3950 fps at the muzzle, so speed has a lot to do with result.

I have some 3-way brackets that I use with rebar. Very portable since it all breaks down. Here's how I hang mine...


"Chances are, when we meet intelligent life forms in outer space, they're going to be descended from predators."
- Michio Kaku
Go to Top of Page

Rapidrob
Senior Member

USA
454 Posts

Posted - Aug 06 2016 :  14:09:34  Show Profile Send Rapidrob a Private Message  Reply with Quote
you did not mention the range ,caliber or est MV/bullet weight.
My club shoots exclusively at AR500 from 100-1,000 yards. No military FMJ (lead core) at any range has ever pierced AR500 steel 1/2" thick.
Many of the targets have been struck thousands of time and are only pock-marked.
I would suspect you have been sold AR400 or other lesser steel plate.

Gulf of Tonkin Yacht Club
NRA Endowment Member
President NM MILSURPS
Go to Top of Page

FW
Advanced Member

USA
623 Posts

Posted - Aug 06 2016 :  19:26:33  Show Profile Send FW a Private Message  Reply with Quote
Off topic but worth a mention.

My club gets old fire hose from the local engine house to hang steel. The hose is very durable. With 1,000 club members shooting the dingers, they replace the hose about every other month.

Edited by - FW on Aug 06 2016 19:34:12
Go to Top of Page

Zero333
Advanced Member



Canada
779 Posts

Posted - Aug 08 2016 :  08:32:59  Show Profile Send Zero333 a Private Message  Reply with Quote
Pierced ? Yes/No: YES
Material Type: Steel (mild ?)
Material Thickness: 0.5"
Target Supported or hanging: Hanging
Cartridge Used: 300 Win.Mag.
Reloads/Factory: Reloads
projectile Make: Hornady
Projectile Type: A-max
Projectile weight: 178gr
Projectile Comments:
Target Distance: 328 yards (300meters)
Velocity @ Target: 2,445 fps
Energy @ target: 2,365 ft-lbs.

Overall Comments: End of range day I had 2 cartridges left so I shot them fast at a 300meter gong.
This is a mild load for mid-range. 3,030 fps at the muzzle (26"bbl)

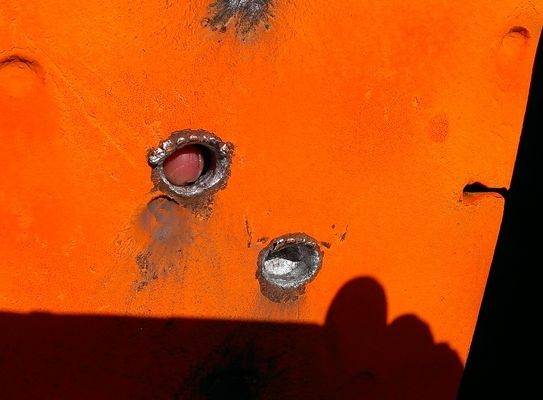

Reached around the gong and stuck my pinkie in the hole for the pic
I think it was the second shot that made the hole, but not 100% sure since I shot them as fast as possible with out sacrificing too much accuracy.




Treat that trigger like itís your first date, not like youíve been married to it for 20 years.
Go to Top of Page

Rapidrob
Senior Member

USA
454 Posts

Posted - Aug 15 2017 :  11:09:17  Show Profile Send Rapidrob a Private Message  Reply with Quote
If you got holes shooting the '06 at 225 yards through your plate you got ripped off.It is not AR500.

Gulf of Tonkin Yacht Club
NRA Endowment Member
President NM MILSURPS
Go to Top of Page

Zero333
Advanced Member



Canada
779 Posts

Posted - Aug 22 2017 :  17:44:27  Show Profile Send Zero333 a Private Message  Reply with Quote
We have some AR-500 (3/8" I think) gongs at the range now and nothing makes a dent in them. They're at 328 yards.

There are a couple small ones at the 100 yard range but I have not seen them since I never shoot at the 100 range. Why would I, when the 300 meter (328 yard) range also has 200 and 100m berms.

Treat that trigger like itís your first date, not like youíve been married to it for 20 years.
Go to Top of Page
